sizing
KTS can also provide site-specific engineering solutions.
Steel trench shields
10’ x 24’ 8” wall
10’ x 20’ 6” wall
10’ x 16’ 6” wall
10’ x 12’ 4” wall
8’ x 24’ 8” & 6” wall
8’ x 20’ 6” & 4” wall
8’ x 16’ 6” & 4” wall
8’ x 14’ 4” wall
8’ x 12’ 4” wall
6’ x 24’ 4” wall
6’ x 20’ 4” wall
6’ x 16’ 4” wall
6’ x 14’ 4” wall
6’ x 12’ 4” wall
4’ x 24’ 4” wall
4’ x 20’ 4” wall
8” schedule 80 spreaders from 2’ to 20’
Man hole shields
8’h x 8’w x 8’d
8’h x 10’w x 10’d
8’h x 12’w x 12’d
All above sizes based on 4” spreaders
Other available spreader sizes: 1’, 2’, 3’, 4’, 5’, & 6’

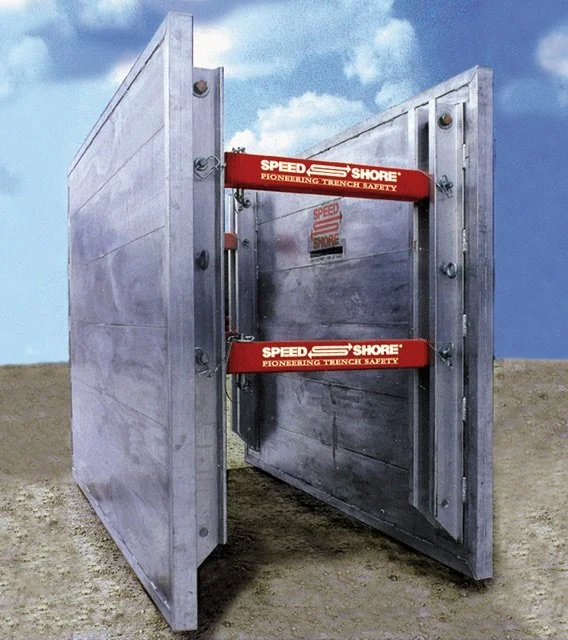

Aluminum panel shields “Aps”
8’ x 6’
8’ x 8’
8’ x 10’
8’ x 12’
End loadable spreaders from 26” to 96”
24” legs & stacking tubes available
modular aluminum shields
“maps” “build a box”
Heights of 4’, 6’, & 8’ + stackable combinations
Widths and Depths of 4’, 6’, & 8’ with spreaders for two & three sided operations
Spreaders from 26” to 96”
24” legs & stacking tubes available
hydraulic shoring “vertical shores” “trench jacks”
high volume pumps
V - 01.5 - 036 22” - 36” range
V - 3.5 - 036 22” - 36” range
V - 01.5 - 064 40” - 64” range
V - 01.5 - 88 52” - 88” range
Extension tubes to create a range from 22” - 144”
rock boxes
“bedding box”
“Stone mixer”
KTS rock boxes are custom built in Louisville, KY
Louisville built boxes have 3/4” ends & bottom with 1/2” sides
7.5 yd
9 yd
12 yd
road plates
10,000 lbs certified lifting device
1” thick steel
Sizes available:
4’ x 8’
5’ x 10’
8’ x 10’
8’ x 16’
8’ x 20’
Also available for plate & beam applications
“KTS provides the best trench shoring solution for all your construction needs.”
-Kentuckiana Trench Shoring
